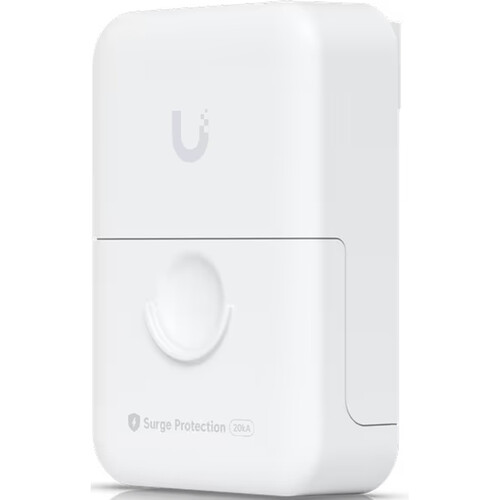

Add protection for your outdoor power over Ethernet device installations with this Outdoor Ethernet Surge Protector from Ubiquiti. Supporting a 10 Gb/s data throughput and 60W PoE++ with its dual RJ45 ports, this single device passive surge protector is designed with a 20kA surge discharge.
Add protection for your outdoor power over Ethernet device installations with this Outdoor Ethernet Surge Protector from Ubiquiti. Supporting a 10 Gb/s data throughput and 60W PoE++ with its dual RJ45 ports, this single device passive surge protector is designed with a 20kA surge discharge. IPX5 rated weather resistance ensures reliable operation while the surge protector is mounted on a wall or pole.
ESD protection for outdoor high-speed networks.
– Protects outdoor Ethernet devices, up to 20kA discharge current.
Dimensions: 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3″)
Weight: 95 g (3.35 oz)
Enclosure Material: Polycarbonate
Weatherproofing: IPX5
Hardware
Networking Interface: (2) RJ45 female connectors
DC Spark-Over Voltage: 90V @ 100V/s
Max. Impulse Spark-Over Voltage: 600V @ 1kV/µs
Discharge Current: 20kA
Insulation: Max. Resistance: 1G ohm @ 50V
Max. Capacitance: 1.0 pF @ 1 MHz
Data Line Protection: Up to 10 Gbps
PoE Support: ✓
ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
Ambient Operating Temperature: -30 to 65° C (-22 to 149° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Shock and Vibration Certification: ETSI300-019-1.4 Standard
