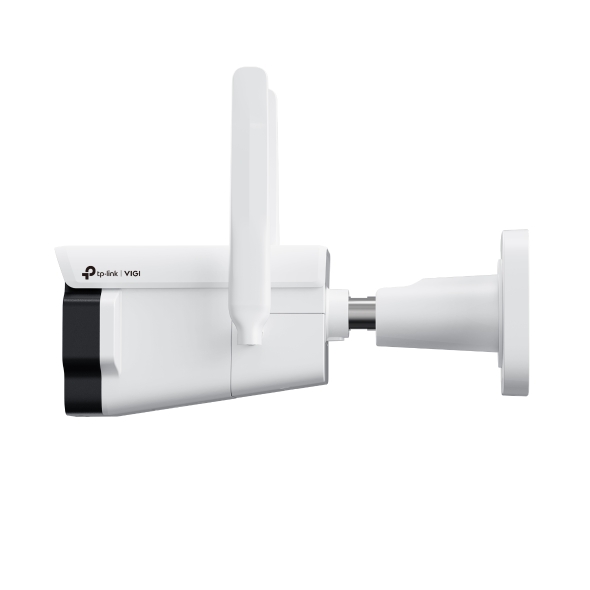

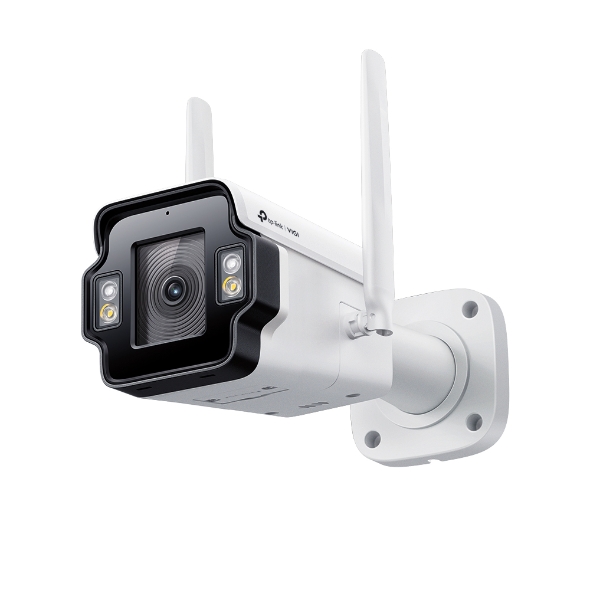

TP-Link InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera

TP-Link
Add to wishlist
Compare

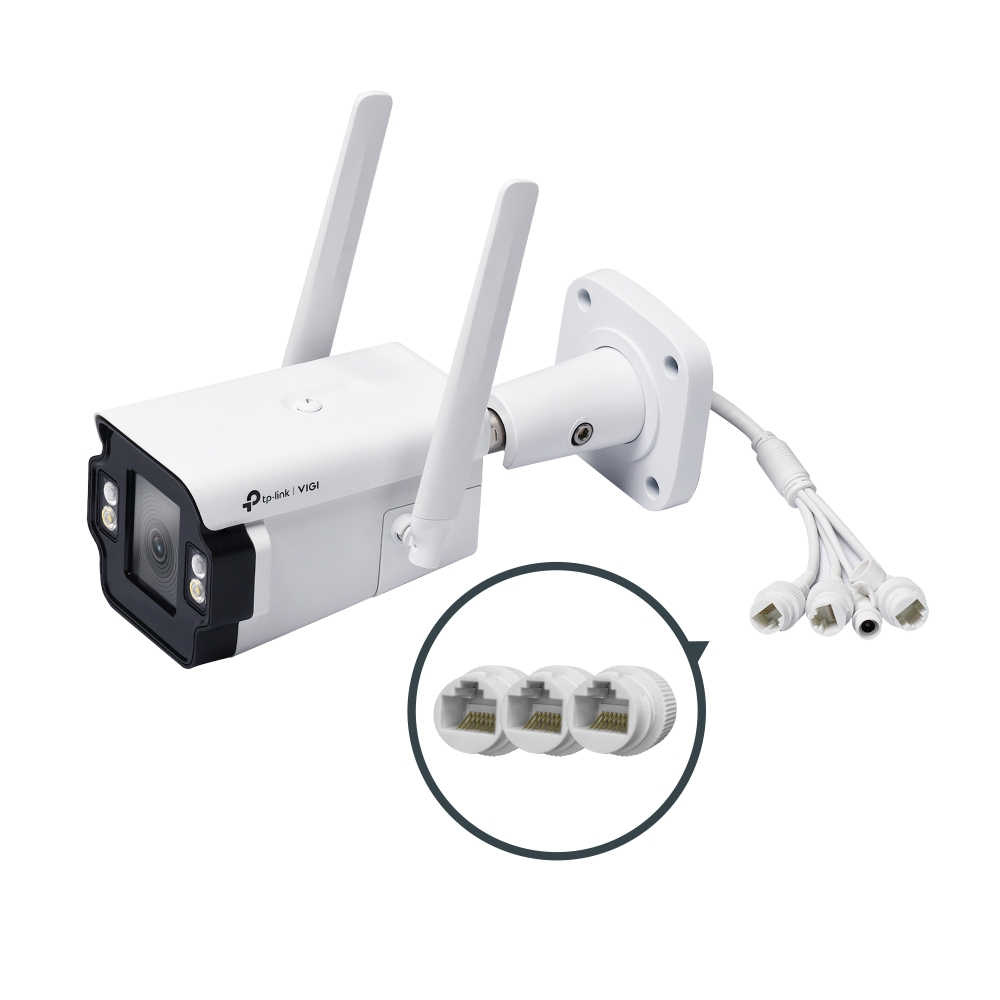

InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.

₹15,999.00 ₹19,999.00 Inc. GST

cash on delivery icon
Compare
  • 4MP Super-High Definition and 24h Full-Color
  • 4G Mobile Networking*1
  • 3 LAN Ports for Downstream Devices
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • H.265+ Compression Technology
  • IP66 Weatherproof
SKU: S345-4G Categories: ,
Brands

TP-Link
CAMERA
Image Sensor 1/2.7“ Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 4 mm
Aperture F1.6
FOV Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens Mount M12
DORI Distance Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range • Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
ILLUMINATOR
IR LED • Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LED • Quantity: 2
• Range: 30m
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2688 X 1520
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688×1520,2560×1440,2304×1296,2048×1280,1920×1080,1280×720
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848×480,704×576, 640×480, 640×360,352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes (Built-in Microphone)
Audio Output Yes (Built-in Speaker)
Audio Compression Yes
Audio Sampling Rate 8KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S/G/T)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
Standard LTE-TDD/LTE-FDD/WCDMA

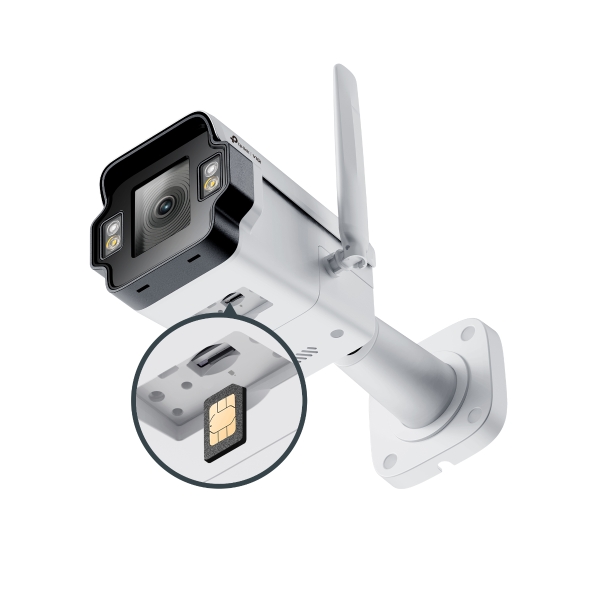

SIM Type Nano SIM*1
Category 4
Frequency • LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
Uplink and Download Data Rate Uplink: 50 Mbps, Downlink: 150 Mbps
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage • Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload to FTP server
• Send to Alarm Server
• Email Alarm
INTERFACES
Network Interface 3 RJ45 10/100M LAN Ports
Alarm N/A
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1
Built-in Nano-SIM Card Slot Yes
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker Yes
Audio N/A
GENERAL
Operating Temperature -30℃ to 60°C
Storage Temperature -40℃ to 60°C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material Metal
Net Weight 1.09 Kg
Power Supply • 12V DC/1 A, 5.5 mm Coaxial Power Plug
Antenna • Quantity: 2

• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:
Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection IP66 Weatherproof
Product Dimensions (L x W x H) 10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
Certifications WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66
