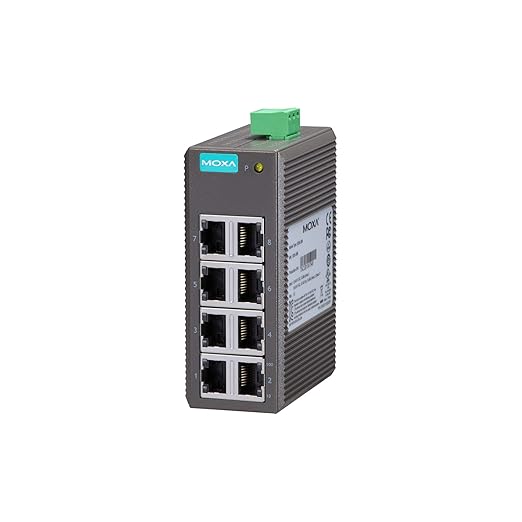

Moxa EDS-208 8 Port Entry Level unmanaged Ethernet Switch w/(8) 10/100BTX Ports
Moxa EDS-208 8 Port Entry Level unmanaged Ethernet Switch w/(8) 10/100BTX Ports - Image 2
, ,

Moxa EDS-208 8 Port Entry Level unmanaged Ethernet Switch w/(8) 10/100BTX Ports

Moxa
Add to wishlist
Compare

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment.

Check Delivery Availability

₹14,999.00 ₹19,999.00 Inc. GST

Available Offers
  • save300 – Use this code & get 300 off
cash on delivery icon
Compare
  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
  •  IEEE802.3/802.3u/802.3x support
  •  Broadcast storm protection
  •  DIN-rail mounting ability
  •  -10 to 60°C operating temperature range
SKU: EDS-208 Categories: , ,
Brands

Moxa

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-208: 8
    EDS-208-M-SC: 7
    EDS-208-M-ST: 7
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

    EDS-208-M-SC: 1

  • 100BaseFX Ports (multi-mode ST connector)

    EDS-208-M-ST: 1

  • Optical Fiber



Switch Properties

  • Processing Type

    Store and Forward

  • MAC Table Size

    2 K

  • Packet Buffer Size

    768 kbits

Power Parameters

  • Input Voltage

    12/24/48 VDC
    24  VAC

  • Operating Voltage

    9.6 to 60 VDC
    18 to 30 VAC

  • Input Current

    EDS-208 Models: 12 to 48 VDC, 0.14 to 0.04 A or 24 VAC, 50-60 Hz, 0.13 A (max.)

    EDS-208-M-SC/EDS-208-M-ST Models: 12 to 48 VDC, 0.20 to 0.05 A or 24 VAC, 50-60 Hz, 0.21 A (max.)

  • Connector

    1 removable 3-contact terminal block(s)

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

Physical Characteristics

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions

    EDS-208: 40.03 x 100 x 74 mm (1.58 x 3.94 x 2.91 in)
    EDS-208-M-SC: 40.03 x 100 x 82.13 mm (1.58 x 3.94 x 3.23 in)
    EDS-208-M-ST: 40.03 x 100 x 84.1 mm (1.58 x 3.94 x 3.31 in)

  • Weight

    EDS-208: 159 g (0.35 lb)
    EDS-208-M-SC: 166 g (0.37 lb)
    EDS-208-M-ST: 166 g (0.37 lb)

  • Installation

    DIN-rail mounting

Environmental Limits

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

Standards and Certifications

  • Safety

    UL 508
    EN 62368-1

  • EMC

    EN 55032/35

  • EMI

    FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-32

MTBF

  • Time

    EDS-208 Models: 10,541,554 hrs
    EDS-208-M Models: 7,499,231 hrs

  • Standards

    Telcordia (Bellcore), GB

Warranty

  • Warranty Period

    5 years
